CNC automatic hoop bending machine
2.The double-line independent pressing and feeding mechanism can ensure the consistency of the length of the two steel bars during double-line processing.
3. Servo controls wire feeding and bending, with high precision in feeding length and bending angle.
4.Servo controlled cutting, high cutting frequency, can cut continuously at high frequency
5. For wire feeding, bending and cutting, planetary reducer is used as torque transmission, which has high torque transmission efficiency, high precision and long service life.
Shaanxi Yongtuo: Your Trusted CNC Automatic Hoop Bending Machine Partner
Shaanxi Yongtuo Machinery Technology Co., Ltd, established in 2003, specializes in manufacturing advanced CNC automatic hoop bending machines for global industries. With 37 patents, a mature R&D team, and 20+ years of export expertise, we deliver energy-saving, user-friendly machines backed by 24/7 support.
Why Choose Us?
- ✅ 20+ Years Expertise: Trusted by construction giants and prefab factories worldwide.
- ✅ Patented Technology: 37 core patents ensure superior bending accuracy (±0.5° angle tolerance).
- ✅ CE & ISO Certified: Compliant with international safety and performance standards.
- ✅ 24/7 after-sales: ≤12-hour fault response, remote diagnosis and on-site maintenance.
- ✅ Customized solutions: Tailor-made CNC automatic hoop bending machines to specific project needs (e.g. spiral stirrups, high-strength steel).
Features & Advantages
- 🔹 Arc-Shaped Straightening Mechanism: Minimizes steel bar torsion and surface damage.
- 🔹 Dual-Line Pressing System: Ensures consistent length (±1mm) for parallel processing.
- 🔹 Servo-Driven Precision: High-speed cutting (60 cuts/min) and programmable bending angles.
- 🔹 Planetary Reducer: 30% longer lifespan with efficient torque transmission.
- 🔹 Energy-Saving Design: 15% lower power consumption vs. competitors.
Technical Parameters
Applications
- Construction: Bridges, tunnels, high-rises.
- Prefab Factories: Standardized stirrups for concrete panels.
- Renewable Energy: Wind turbine bases, solar mounts.
- Automotive: Chassis and battery frame components.
Customization Options
- Adjustable bending angles (0°–180°).
- Multi-language interfaces (English, Arabic, Spanish).
- IoT integration for real-time monitoring.
Certifications
📜 CE, ISO 9001, and SGS certified.
After-Sales Service
- Free operator training is an integral part of our commitment to ensuring your seamless experience with our products. Our comprehensive training program, led by industry - seasoned experts, will cover every aspect of equipment operation. From basic startup procedures to advanced troubleshooting techniques, trainees will gain hands - on experience. This equips operators with the skills needed to maximize productivity and minimize downtime, making the entire process efficient and hassle - free.
- We offer an industry - leading 2 - year warranty + lifetime technical support for all our products. During the 2 - year warranty period, any defective parts will be replaced at no cost, ensuring your equipment functions optimally. After the warranty expires, our lifetime technical support kicks in. Our team of dedicated engineers is just a call or an email away, ready to provide guidance on maintenance, answer operational queries, and offer solutions to keep your CNC automatic hoop bending machine running smoothly for years to come.
Packaging
🌍 Our export - ready wooden crates with waterproofing are meticulously crafted to safeguard your valuable cargo during international shipping. Constructed from high - quality timber, these crates are sturdy enough to withstand rough handling. The waterproofing feature, achieved through a specialized coating process, ensures that your items remain dry even in adverse weather conditions. This not only protects against water damage but also extends the lifespan of the goods inside. Whether you're shipping delicate electronics, precious artworks, or heavy machinery parts, our crates provide the reliable protection required for a seamless export journey.
About Shaanxi Yongtuo
Founded in 2003, our company has steadily grown into a global player, having served 50+ countries. Our footprint extends far and wide, with a particularly strong presence in the implementation of Belt and Road Initiative projects in Southeast Asia and the Middle East. In these regions, we have actively participated in infrastructure building, energy development, and trade facilitation initiatives. Through our dedicated efforts, we have not only contributed to local economic growth but also strengthened international cooperation and cultural exchanges, fostering long - term partnerships that benefit all parties involved.

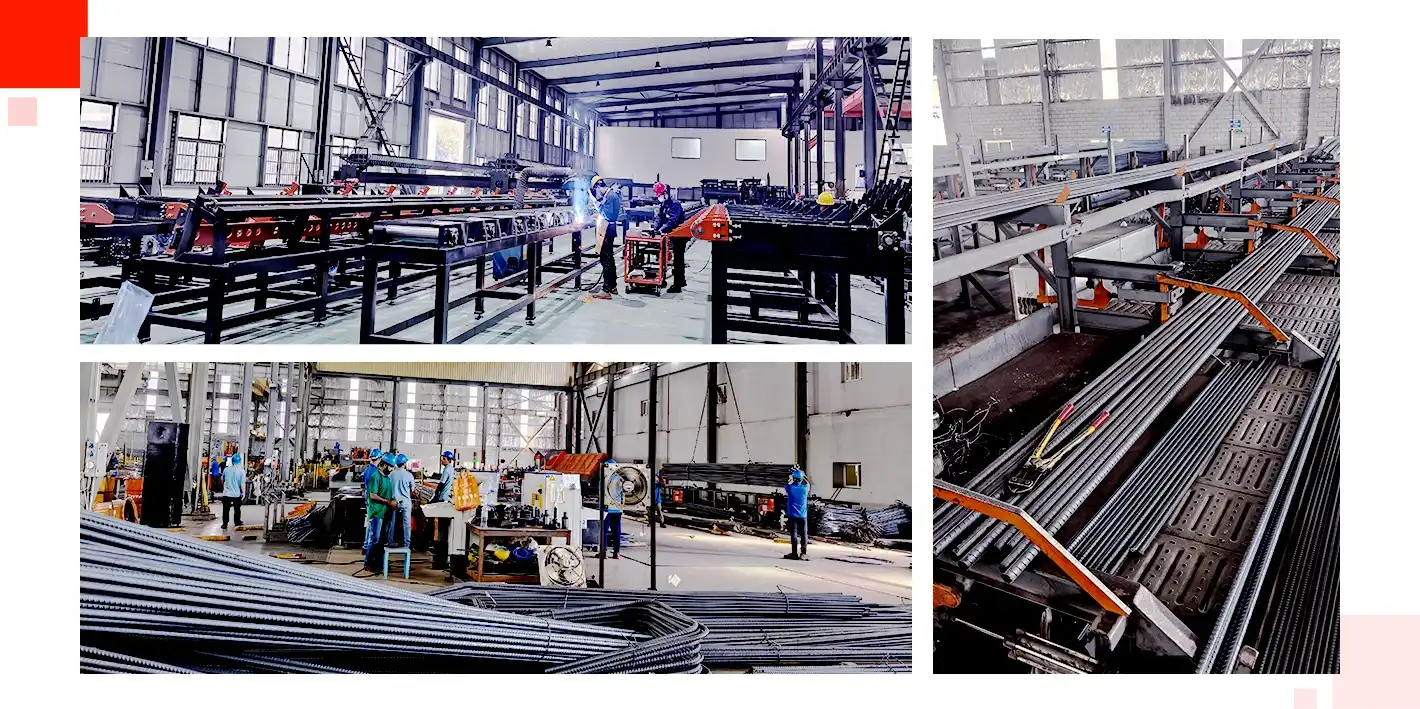

Factory Tour
🏭 15,000㎡ facility with robotic welding and precision testing labs.
Customer Visits
We warmly welcome clients from around the world to visit our factory and experience our production capabilities firsthand. Every visit is an opportunity to deepen mutual understanding, discuss project requirements in detail, and explore customized solutions tailored to specific industry needs.
FAQs
Q: What is the bending accuracy?
A: ±1mm in length, ±0.5° in angle.
Q: Can the CNC automatic hoop bending machine process stainless steel?
A: Yes, it supports stainless steel up to HRB400 grade.
Q: Is training provided?
A: Yes, we offer free on-site training with every purchase.
Q: What is the delivery lead time?
A: Typically 15–30 days after deposit confirmation.
Q: What does the warranty cover?
A: A 1-year warranty is provided for all critical components.
Contact Us Today!
Let Shaanxi Yongtuo be your reliable partner in precision steel bending solutions.
