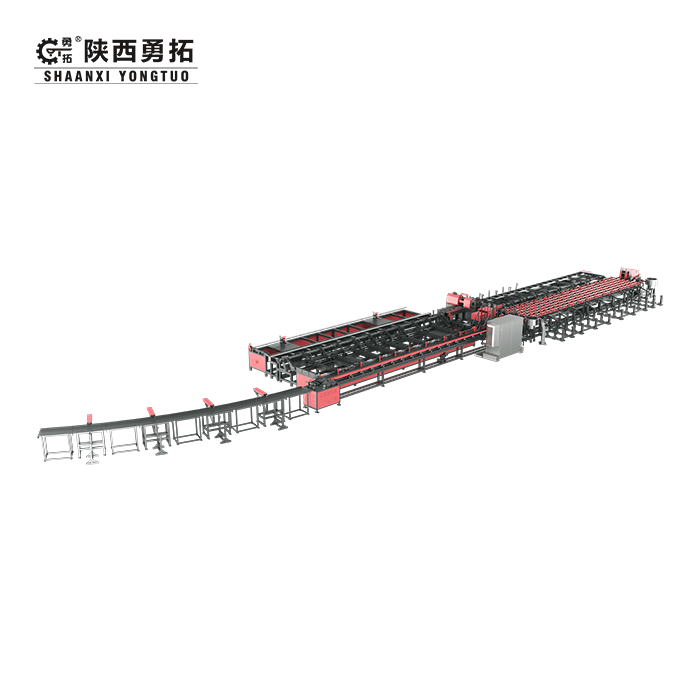

Bar shearing production line
Bar shearing production line/YTQ600
1.Equipment parameters
|
Item |
Details |
||||||
|
Device Name |
Bar shearing production line |
||||||
|
Models |
YTJQ-600 |
||||||
|
Raw material category |
Bars |
||||||
|
Raw material specifications |
Φ12mm-Φ40mm |
||||||
|
Conveying speed |
2.5m/s |
||||||
|
Shearing power |
2500KN |
||||||
|
Cutting width |
600mm |
||||||
|
Minimum shear length |
1500mm |
||||||
|
Shear data |
Φ16 |
Φ20 |
Φ25 |
Φ28 |
Φ32 |
Φ36 |
Φ40 |
|
30root |
25root |
20root |
18root |
15root |
10root |
8root |
|
|
Air pressure |
0.6MPa |
||||||
|
Voltage/Frequency |
380V/50HZ |
||||||
|
Equipment power |
66KW |
||||||
|
Equipment weight |
22000KG |
||||||
|
Overall dimensions |
28000mmx7000mmx2500mm |
||||||
2.Production output
Shear down production (batch processing capacity)
|
Number |
Rebar diameter |
Unloading length |
Output per hour |
10-hour output
|
|
1. |
Φ16 |
6000mm |
18900KG |
189000KG |
|
2. |
Φ20 |
6000mm |
22000KG |
220000KG |
|
3. |
Φ25 |
6000mm |
27000KG |
270000KG |
|
4. |
Φ28 |
6000mm |
31000KG |
310000KG |
|
5. |
Φ32 |
6000mm |
33000KG |
330000KG |
|
6. |
Φ36 |
6000mm |
28000KG |
280000KG |
|
7. |
Φ40 |
6000mm |
28000KG |
280000KG |
3.Technical advantages

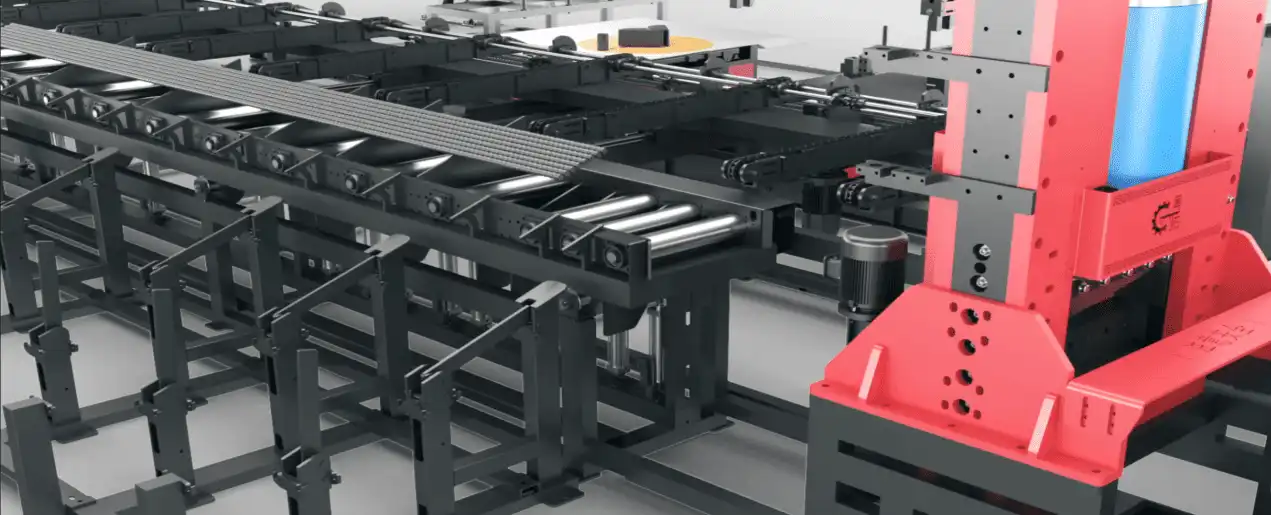

Feed chute:
The width of the feeding chute is 600mm which can convey several pairs of bars for processing.
Length sizing:
Adopting servo motor to drive the movement of the fixed length, the precision of the fixed length can reach ±1mm.
Shear head:
The use of 2500KN hydraulic shear, heavy-duty frame design rigidity, stable operation can be 24H uninterrupted work.
Tail material collection:
Designed with a tail material collection device, the tail material remaining in the shear is collected uniformly, without manual pickup, convenient and safe.
Cutting down material:
Double-side three-station receiving bin, can collect finished steel bars of various specifications
